Product Description
1. Raw material branding
3.0Megapixel MSTAR Chipset,Ultra low illumination COMS Wifi Cameras,

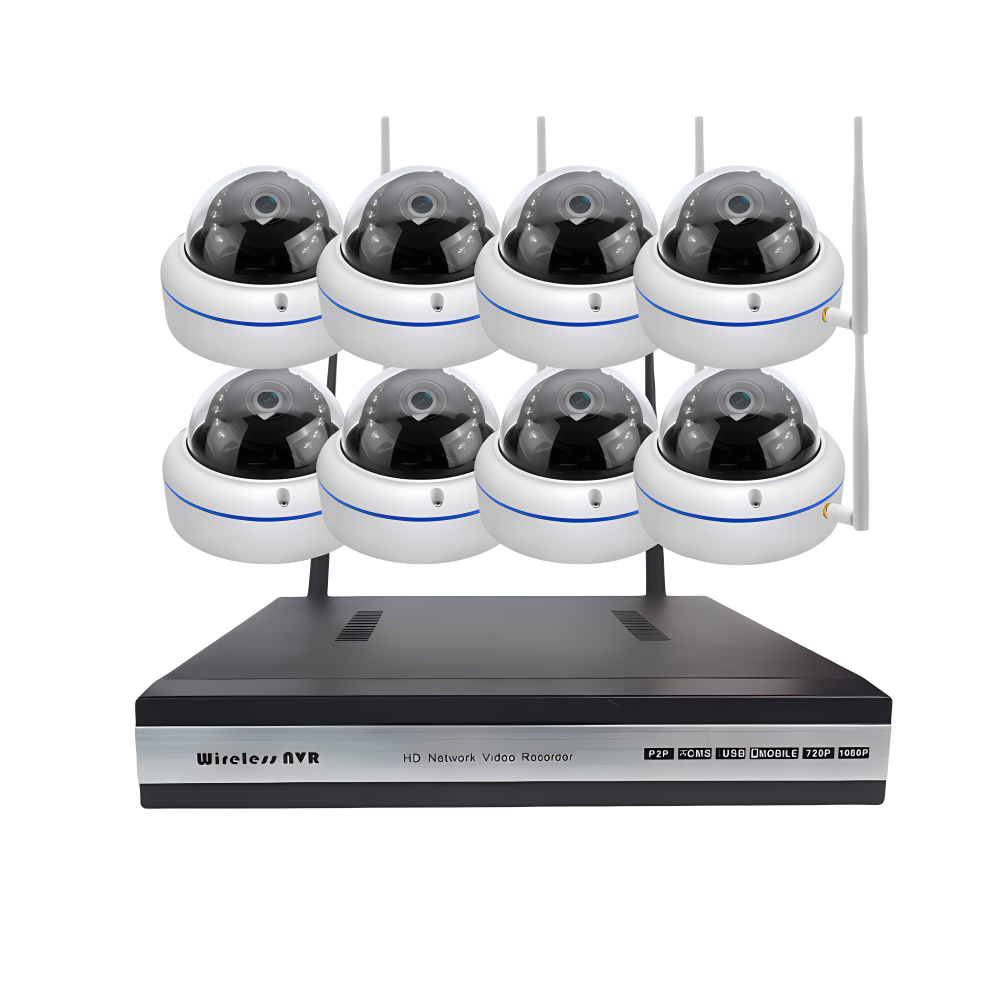

Mini Style, Outdoor/Indoor Waterproof Vandal-proof(IK10 standard) Dome Wifi Cameras With Wifi NVR Kits
AI feature: Human detection; motion detection;
True Plug&play CCTV Kits 4CH,8CH, 16CH Optional System ;
Wifi Cameras with HD Videos it’s Metal housing, And Support Wall &Ceiling mounting;
2. 24/7 Recording and Monitoring
Night vision support three mode setting: Auto white balance, Full color night vision, Dual light Source;
3. Local & Cloud Storage and support customize more functions
This System can be store video right on the device or cloud;
Customize can be support : Zoom , audio , IO/alarm, Field of View, IR distance, Logo etc.
Product Parameters
Specification
| Wireless NVR | ||||
| Model number | XZ-KN6108W-15T/4 | XZ-KN6108W-15T/8 | ||
| Video &Audio Input | Network audio/video input | 4CH | 8CH | |
|
Video & audio output |
HDMI output | 1 channel, resolution: 1024×768, 1280×1024 , 1366×768, 1440×900, 1920x1080p, 2K, Support audio output | ||
| VGA output | 1 channel, resolution: 1024×768, 1280×1024, 1366×768, 1440×900, 1920x1080p | |||
| Video Coding Format | H.264,H.265 | |||
| Audio Coding Format | G711A | |||
| Video and audio code parameter | Video resolution | 5MP/3MP/1080P/720P | ||
| Synchronous playback | 3MP @ 4CH
5MP @ 1CH |
|||
|
Video Management |
Video recording mode | Scheduled recording, motion detection recording, alarm recording | ||
| Playback Mode | Regular playback, event playback | |||
| Backup method | USB backup | |||
| Hard Drive | Type | 1×SATA interface, support hard disks with max. 6TB | ||
|
External Interface |
Network Interface | 1×RJ 45 10M/100M adaptive Ethernet port | ||
| 1×built-in wireless network card | ||||
| Antenna interface | 2×2.4G, 5DBi integrated antenna | |||
| USB interface | 1×USB2.0 Interface | |||
| Audio Interface | 1 x 3.5 mm headphone port | |||
| power supply | DC 12V2A | |||
| Wireless IPC | ||||
| Pixel | 5MP | 3MP | 2MP | 1MP |
| Resolution | 2560×1920 4:3 | 2304×1296 4:3 | 1920×1080 4:3 | 1280×720 4:3 |
| Lenses | 4 mm | 4 mm | 4 mm | 4 mm |
| Video compression format | H.264,H.265 | H.264,H.265 | H.264,H.265 | H.264 |
|
Stream parameters |
Main stream: 2560×1920@15 fps
Sub-stream: 702×576@15 fps |
Main stream: 2304×1296@15 fps
Sub-stream: 640×360@15 fps |
Main stream:
1920×1080@15 fps sub-stream: 640×360@15 fps |
Main stream:
1280×720@15 fps Sub-stream: 640×360@15 fps |
| Infrared distance | 20 meters | 20 meters | 20 meters | 20 meters |
|
interface |
1 x RJ 45 10M/100M adaptive Ethernet port | 1 x RJ 45 10M/100M adaptive Ethernet port | 1 x RJ 45 10M/100M adaptive Ethernet port | 1 x RJ 45 10M/100M adaptive Ethernet port |
| 1 x SMA interface, 5DBi stick antenna Line, 802.11b/g/n/protocol | 1 x SMA interface, 3DBi stick antenna Line, 802.11b/g/n/protocol | 1x SMA interface, 3DBi sticks Antenna line, 802.11b/g/n/ protocol | 1 x SMA interface, 3DBi stick antenna
Line, 802.11b/g/n/ protocol |
|
| Power Supply | DC 12V1A | DC 12V1A | DC 12V1A | DC 12V1A |
