Product Description

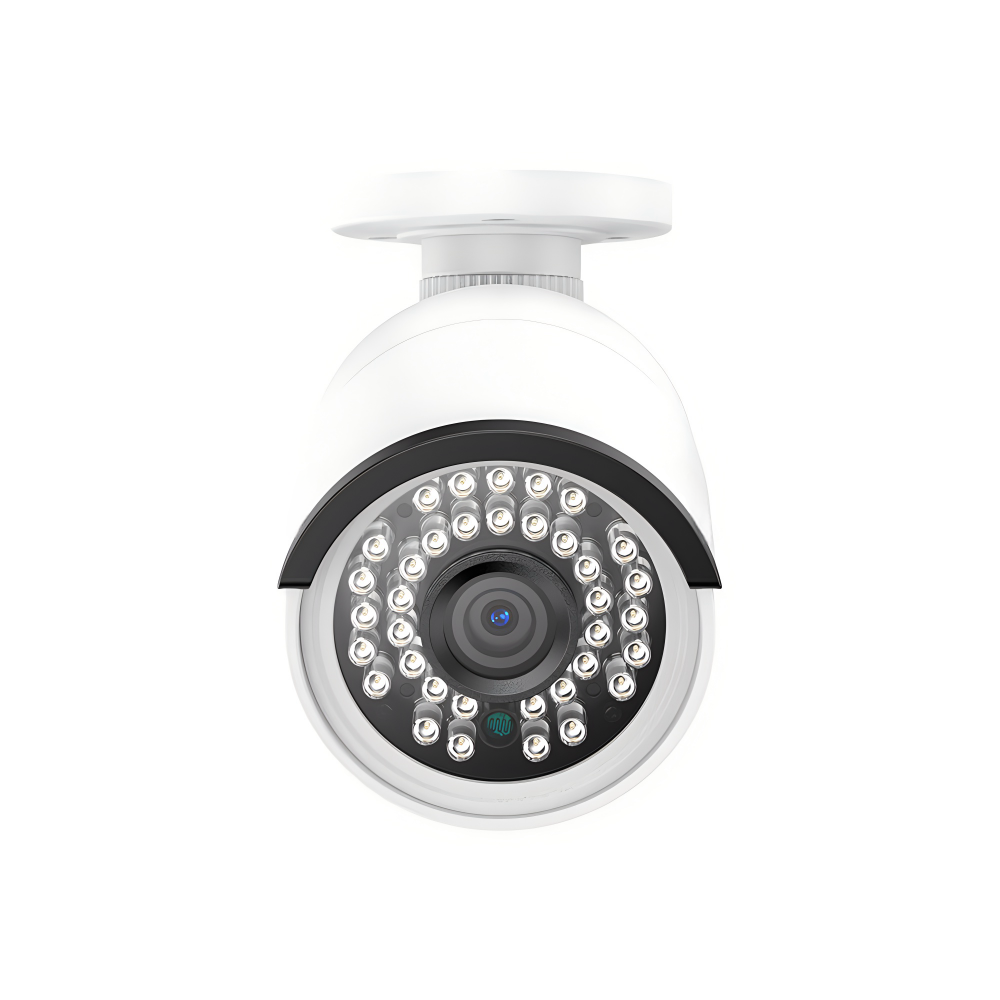

Full HD 3MP Waterproof/Weatherproof Outdoor/Indoor Bullet POE IP Cameras
Embedded RTOS , Linux operating system, With RTSP ,RTMP ,MJPEG ;
MSTAR Chipset, CMOS, Sony/IMX307 Sensor;
36pcs IR LEDs ; IR-distance: 20M-30M;
Night vision: Support three mode (include:AWB, full color night vision,dual light source );
The lens: Full HD 3MP fixed lens: 2.8mm, 4mm ,6mm,8mm optional;
Support : AF/Motorized zoom lens:4X Zoom
Complete Compatible: 4CH 8CH 16CH,36CH 64CH,128CH(POE) NVRs ;
Optional functions: TF/SD, IO/Alarm, ;Audio(1way audio&2 way audio optional );
AI Feature: Human&Vehicle detection
Product Characteristics
Human Detection
AI smart humanoid detect and humanoid tracking.
Motion Detection
Push notifications and motion recording when motion events are detected.
Modify Light Mode
Support three mode: AWB,full color night vision and dual light source.
Cloud Storage
Videolink app support ISO, Android and computer.
Auto Alarm Mode
The camera support I/O alarm.
HD Images
3MP 2304*1296 with HD resolution.
Zoom Capabilities
Motorized zoom lens:4X optical zoom.
Power Over Ethernet
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.
Product Parameters
Specification
| Specification | XZ-I8-MJ10 |
| Structure | MSTAR SSC335 + 1/2.8″ Progressive Scan CMOS sensor IMX307 |
| SNR | ≥ 50 dB |
| HDR(WDR) | Support |
| Privacy mask | Support 4ch Privacy masking area |
| Video | Support OSD, BLC, HLC, DWDR, 3D NR; Brightness/Contrast/Saturation/Sharpness Adjustable
Support Motion Detection Alarm; Area detection humanoid alarm, Support night vision alarm light source linkage |
| Lens | standard configuration 3.6mm; 2.8mm,6mm,8mm Optional |
| Zoom | Motorized zoom lens: 4X Zoom |
| Lens type&FOV | 2.8 mm, horizontal FOV 129°, vertical FOV 50°;
3.6 mm, horizontal FOV 89°, vertical FOV 38°; 6 mm, horizontal FOV 45°, vertical FOV 24°; 8 mm, horizontal FOV 33°, vertical FOV 18°; |
| IR Led | 36pcs IR Led, IR distance 20-30M |
| Frequency | 50Hz/60Hz |
| Audio | Optional Built-in MIC and 2W SPK; audio encoding G.711/G.711A/AAC ,
Adding audio can realize two-way voice intercom and sound alarm； |
| Video Coded Format | H.264 /H265/H265+ |
| Image Resolution | Main stream: 3MP (2304*1296), 1-25fps; 2MP(1920*1080), 1MP(1280*720), 1-30fps |
| Sub-stream: D1, VGA, 640*360, 480*360, CIF; 1-30fps | |
| Video Compression Rate | 500Kbps-3Mbps continuously adjustable, support CBR/VBR |
| TF | Optional MAX:128G |
| IO Alarm | Optional |
| Network Port | 10/100M self-adapt Ethernet port, lighting protection design |
| Protocol | Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P/FTP/SMTP/HIK,etc. RTMP Optional |
| Phone Clients | Support iPhone, Android |
| Browser | Support IE10 and above (equipment embedded Web Server)browser, |
| Business functions | support unit client software,support CMS platform system application |
| Feature | support day/night (support IR-CUT), support LDR signal linkage |
| General Parameters | DC12V, 5W Max, IP66, Optional POE |
| Working temperature | -30°C~60°C |
Download Data Sheet
