Product Description
High-end 4K Security Storage System:

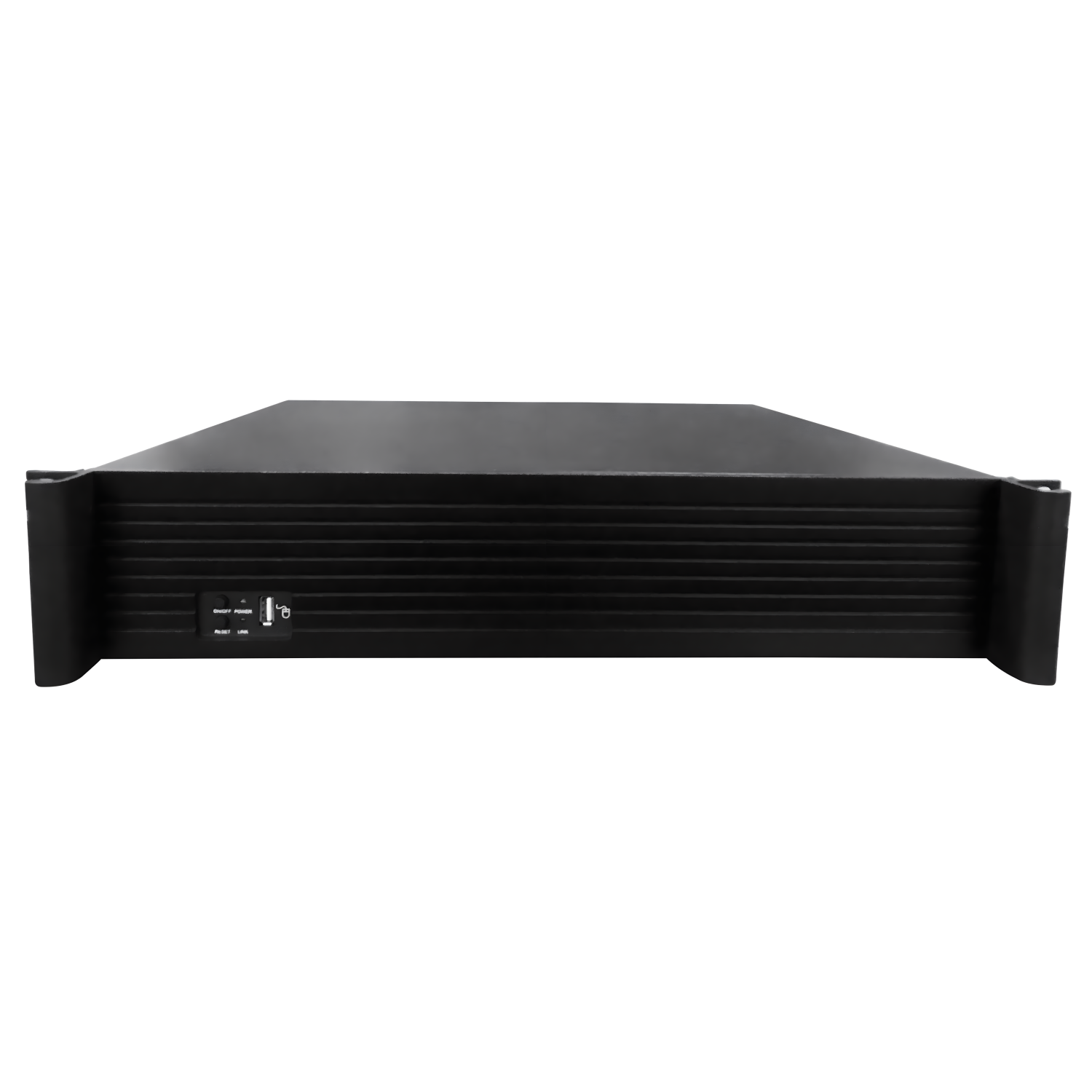

36CH & 64CH Optional Project Series NVRs;

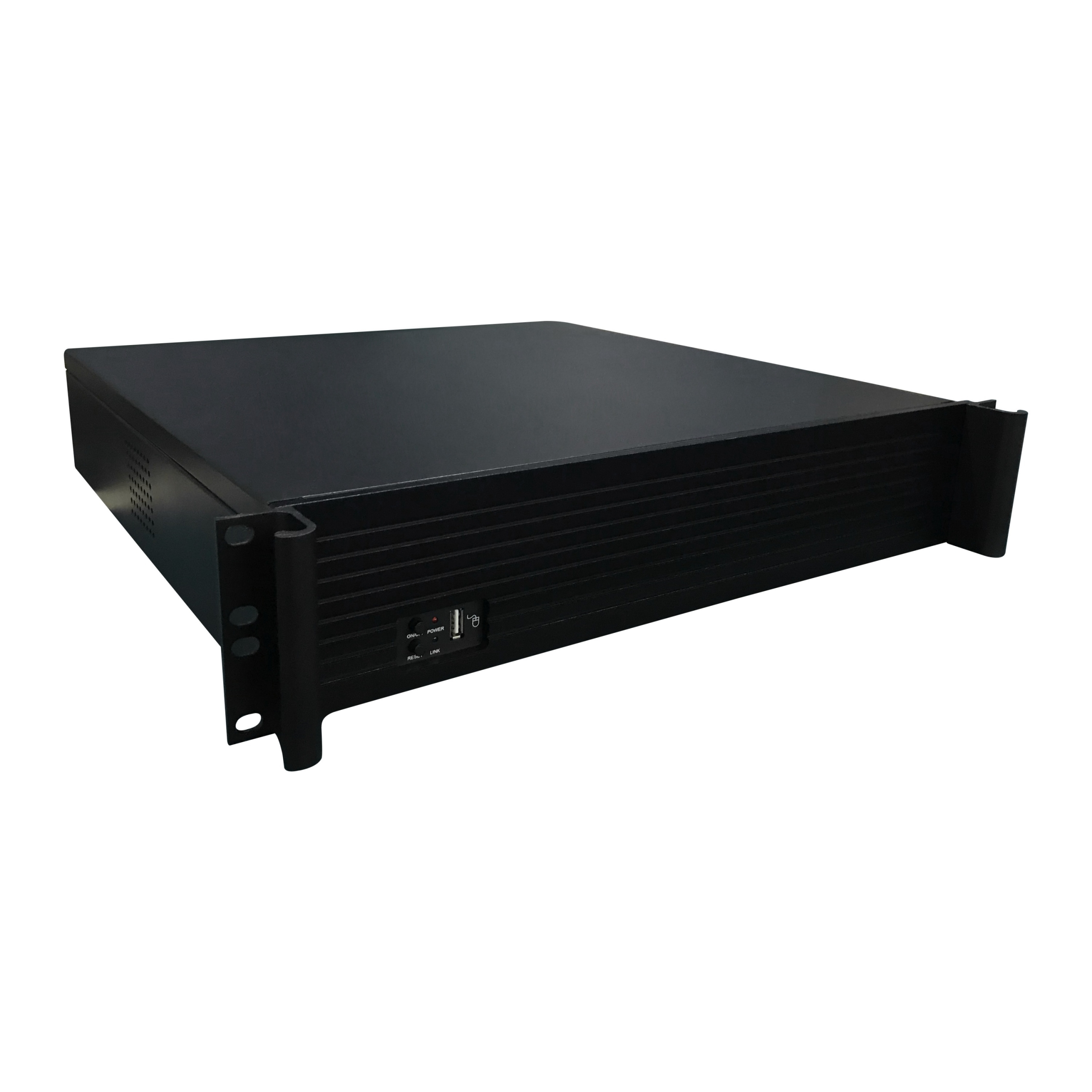

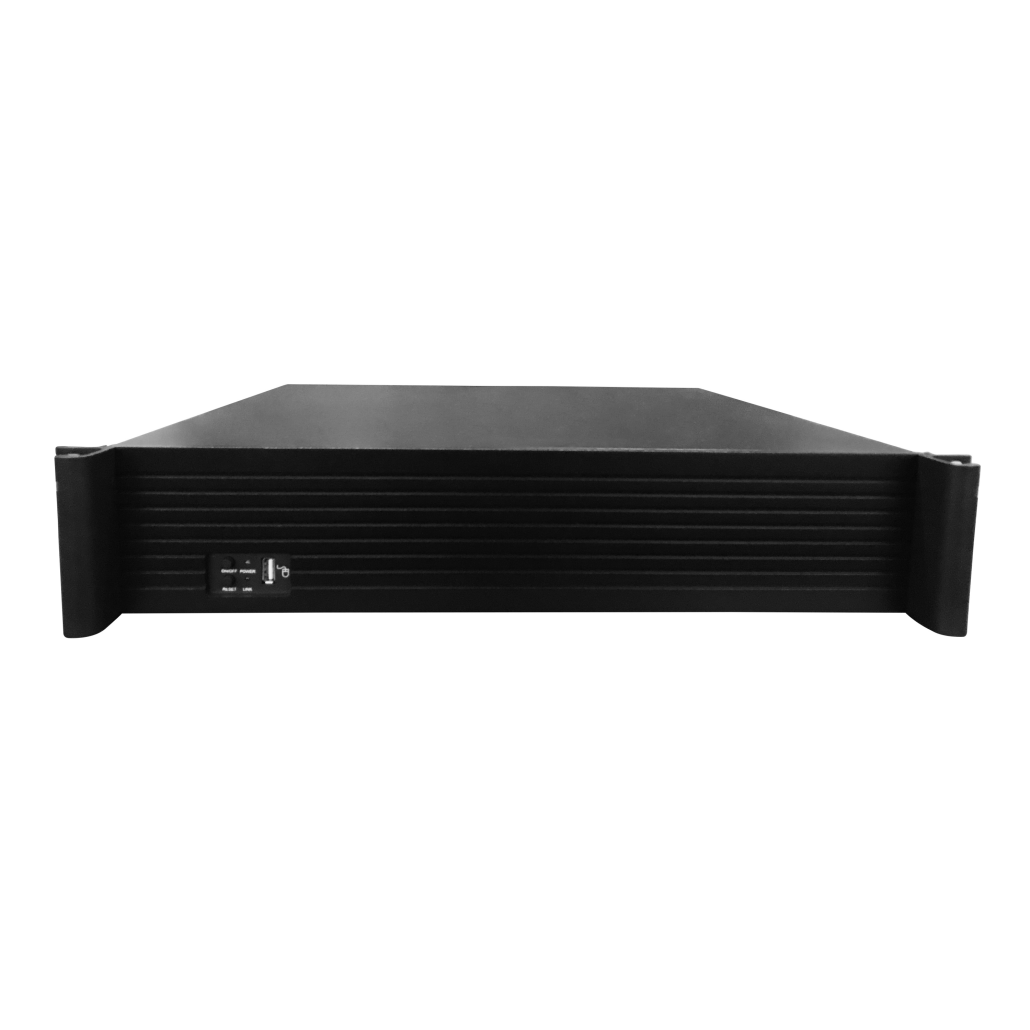

Compatible 1.5U(4HDD) & 2U(9HDD) ;
1.Triple stream decoding, embedded Linux operating system; 24-7 Recording
2.Support 4K Cameras input and centralized management, including IP Cameras parameter configuration, information export and import, real-time information acquisition and upgrade, etc.
3.AI features：motion detection, alarm input, human detection, line crossing detection,retrograde detection, absent alarm, loitering, area intrusion, illegal vehicle parking
4.Support synchronous recording, remote monitoring, backup
5.HDMI,VGA synchronous output, support 4K preview
6.Support preview image and playback image 12 times electronic magnification.
7.Standard ONVIF, SLINK, RTSP, GB28181 protocol.
8.Support DDNS, EMAIL, UPNP, P2P and other functions.
9.Support WEB, mobile phone monitoring, client, VMS monitoring.
10.Supports disk grouping quotas and disk group storage modes.
11.Support channel grouping, preview tour.
12.Supports maximum 16CH 1080P recording synchronous playback and multi-channel synchronous playback.
13.Support double password authentication.
14.Support network monitoring: network traffic, network delay packet loss test, network packet capture backup.
15.Support current bandwidth, stream information,support multiple language.
Product Characteristics
Human Detection
AI smart humanoid detect and humanoid tracking.
Vehicle Detection
Quickly find vehicle targets and auto tracking it.
Modify Light Mode
3-Support three mode:AWB,full color night vision and dual light source.
Cloud Storage
Videolink app support ISO and Android.
Absent Alarm
Support IPC smart analysis: absent alarm, target count, E-fence, line crossing, E-bike detection.
Retrograde Detection
When the system detects a vehicle is driving in the wrong direction, it will immediately capture and save the image and send it back to the monitoring back-end.
H.265+ Compression
7-Advanced H.265 compression technology lets you save on storage space which allows for longer recording times.
Onvif Protocol
The device support ONVIF compatible, can work with third part camera.
Product Parameters
Specification
| Parameters | |||||||||||||||||||||||||||||||||||||||
| Chipset | HI3536 | ||||||||||||||||||||||||||||||||||||||
| OS | Embedded Linux system | ||||||||||||||||||||||||||||||||||||||
| Bandwidth | 512M | ||||||||||||||||||||||||||||||||||||||
| Video Format | H.265+/H.265/H.264 | ||||||||||||||||||||||||||||||||||||||
| Record resolution | 4K/1080P/720P/D1 | ||||||||||||||||||||||||||||||||||||||
| Smart Function | Target count,human detect, e-fence, line-crossing, retrograde alarm, absent alarm…etec | ||||||||||||||||||||||||||||||||||||||
| Recording method | manual, schedule, motion detection, timing, alarm, stop | ||||||||||||||||||||||||||||||||||||||
| Playback | 1CH 4K/4 CH 4K/9*3MP/16*1080P | ||||||||||||||||||||||||||||||||||||||
| Playback mode | Regular playback, event playback | ||||||||||||||||||||||||||||||||||||||
| Backup mode | USB device/ network | ||||||||||||||||||||||||||||||||||||||
| Video input | Support 36 CH IPC（8MP/D1+36 CH preview+16CH playback）
Support 64 CH IPC（8MP/D1+64 CH preview+16CH playback） |
||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||
Normal mode 36CH IPC
Normal mode 64CH IPC
|
|||||||||||||||||||||||||||||||||||||||
| Storage | |
| HDD | 9SATA |
| HDD capacity | 10TB |
| Storage | Local HDD, network disk (IPSAN、NAS) |
| Backup mode | USB portable HDD, memory |

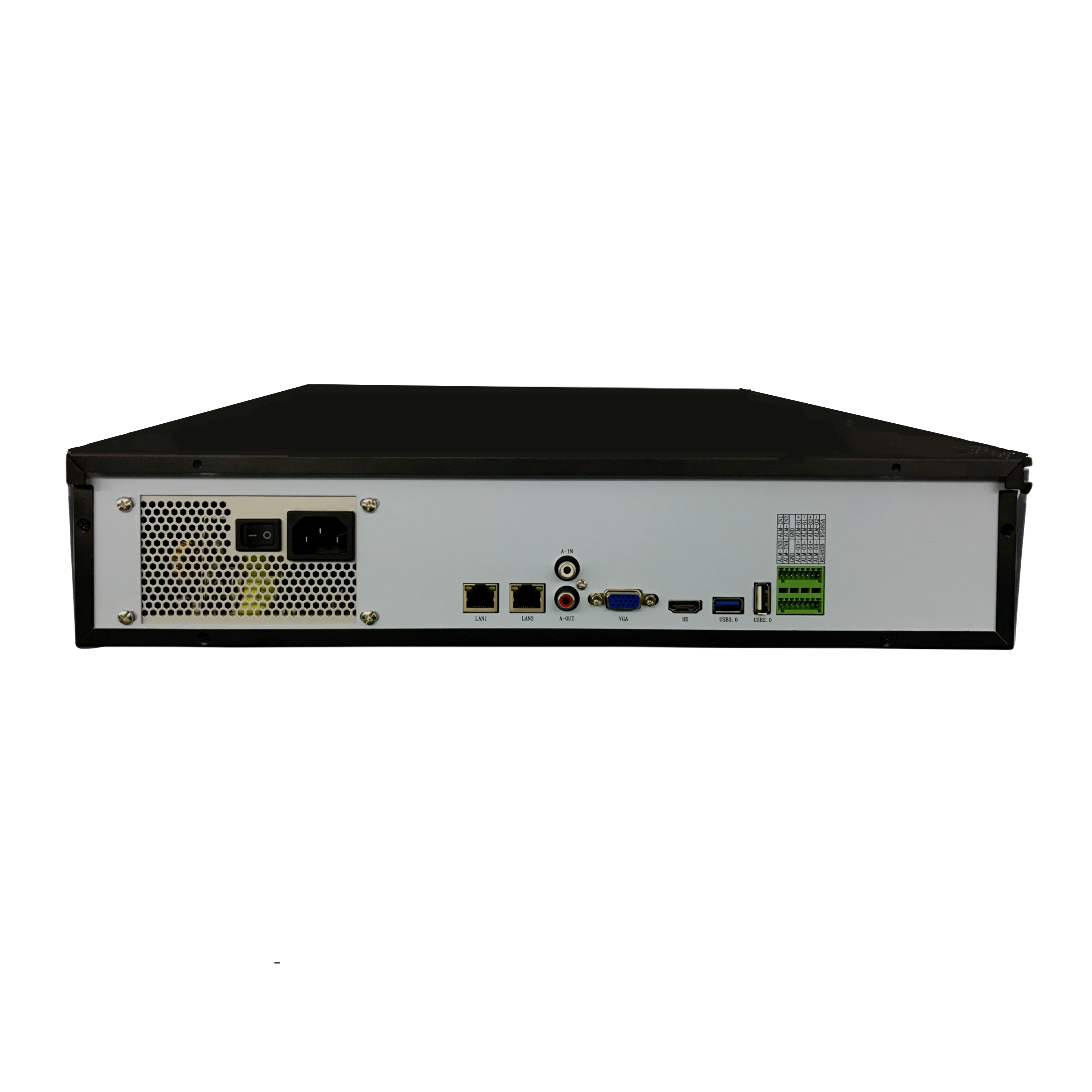

| External Connection | |
| Audio input | 1 pcs RCA port (electrical level 1.8Vp-p,impedance 1kΩ) |
| Audio output | 1 pcs RCA port (electrical level 1.8Vp-p,impedance 1kΩ) |
| Network Port | 2 pcs,RJ45 1000M ethernet port |
| Series Port | 1 pcs, RS-485 port |
| USB port | 2 pcs USB2.0, 1 pcs USB3.0 |
| E-Sata | Support |
| Alarm input | 4 CH |
| Alarm output | 4 CH |
| General | |
| Power supply | AC100-240V 200W |
| Power consumption | ≦160W |
| Working temperature | -10°C ~ 55°C/ |
| Working humidity | 10%-90% |
| Size | Device : 440X430X90mm, package: 545X535X225mm |
| Weight/pcs | Net weight: 9Kg, Gross weight:9.8Kg (without HDD) |
| Package | 2 pcs/CTN,570mm×570mm×490mm, 20.2Kg |
