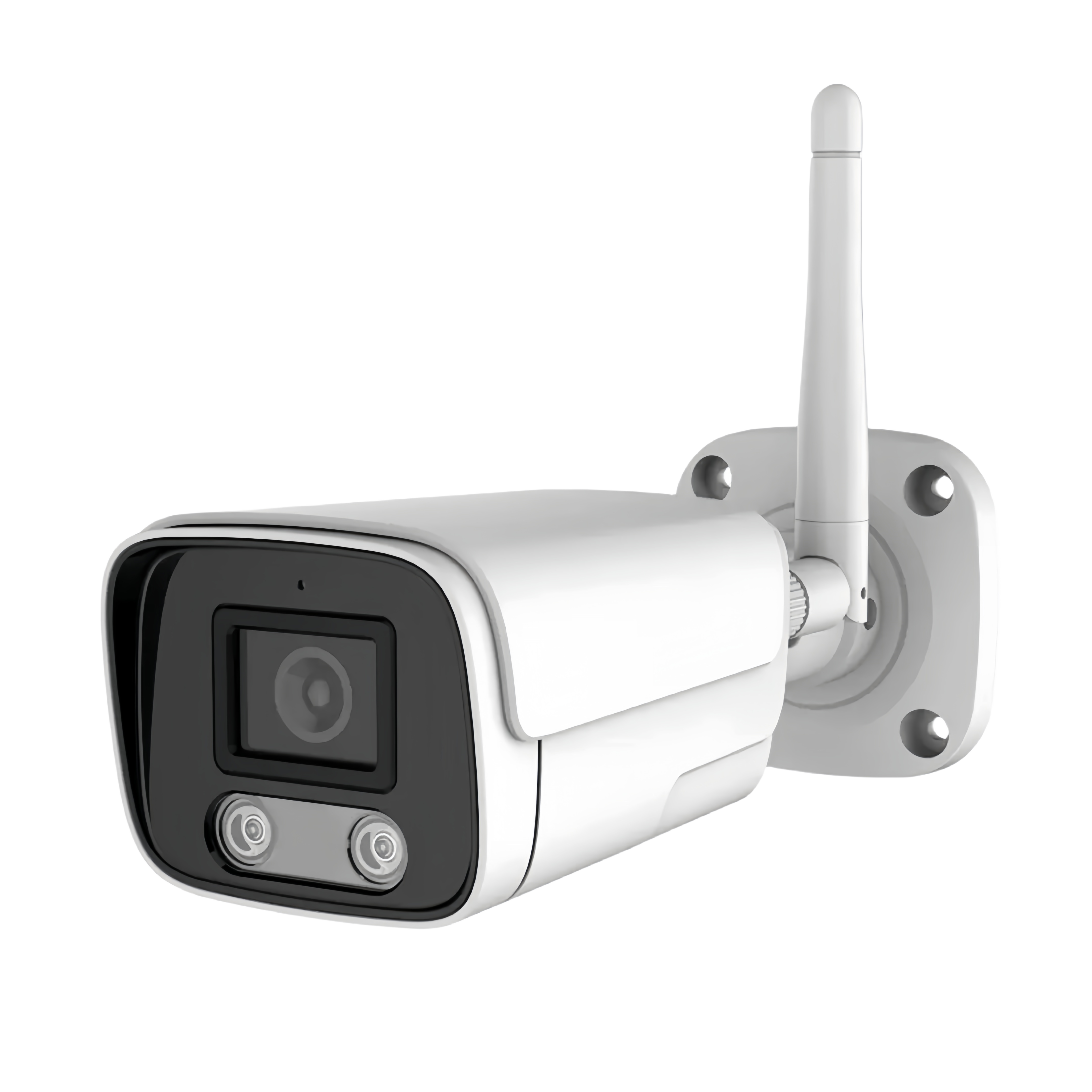

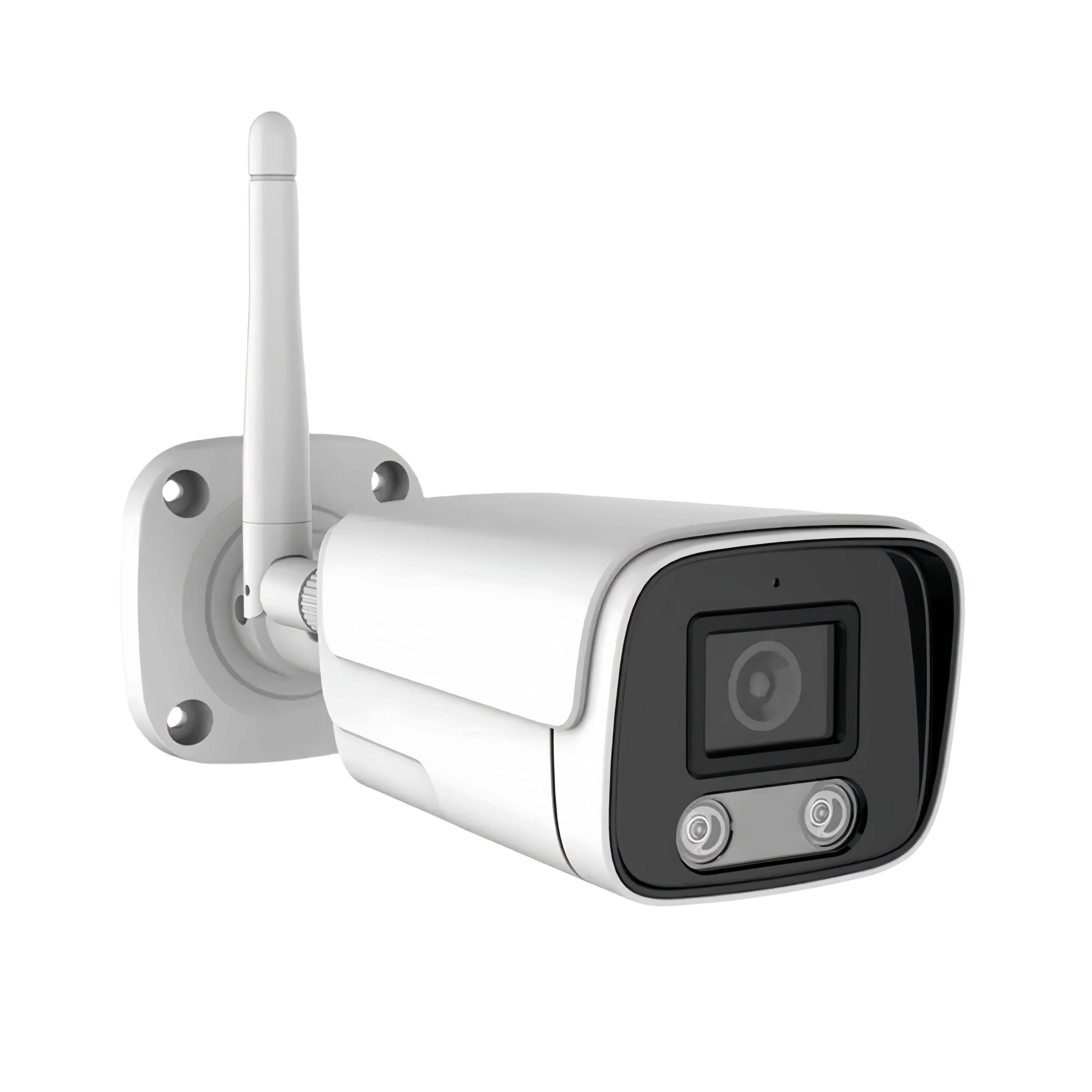

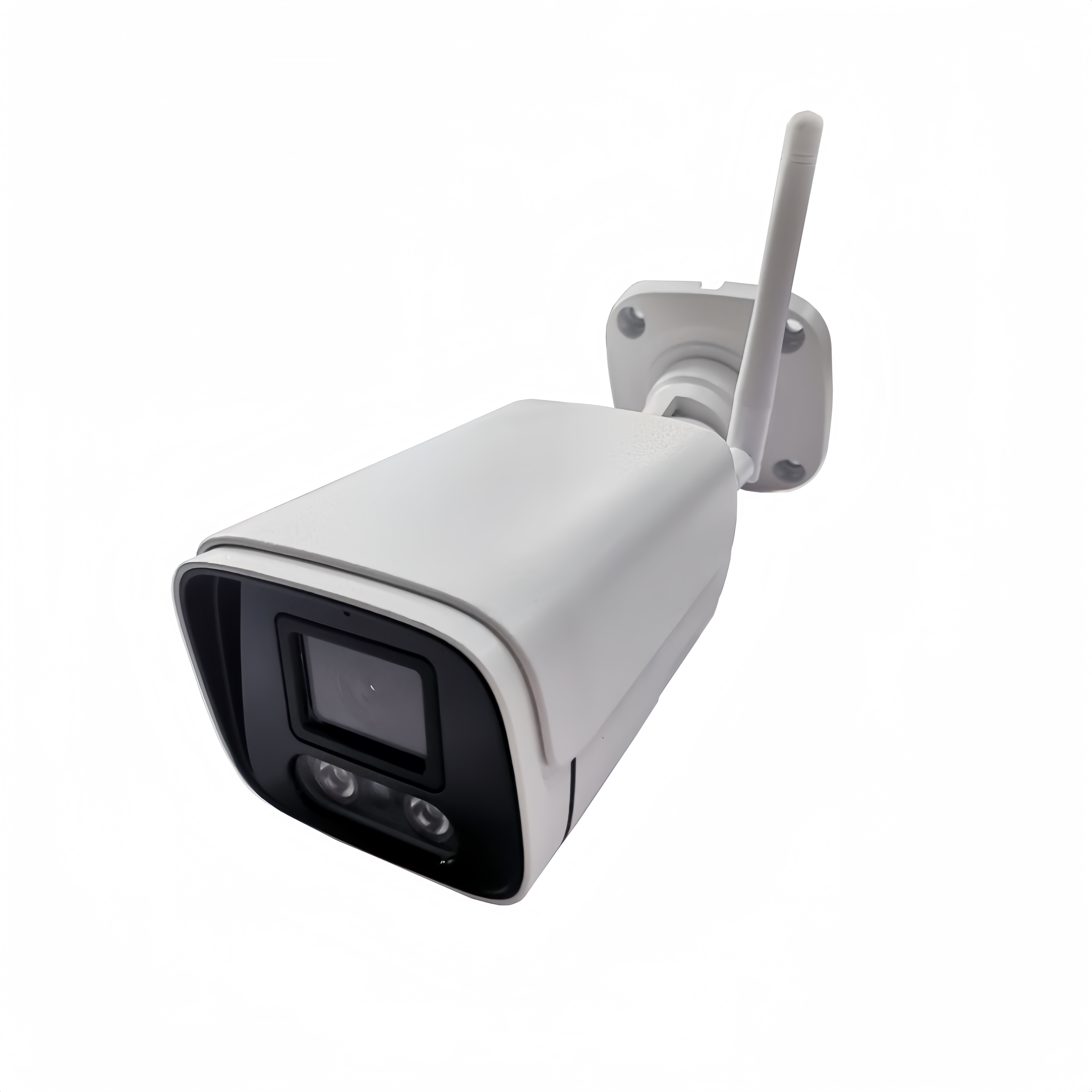

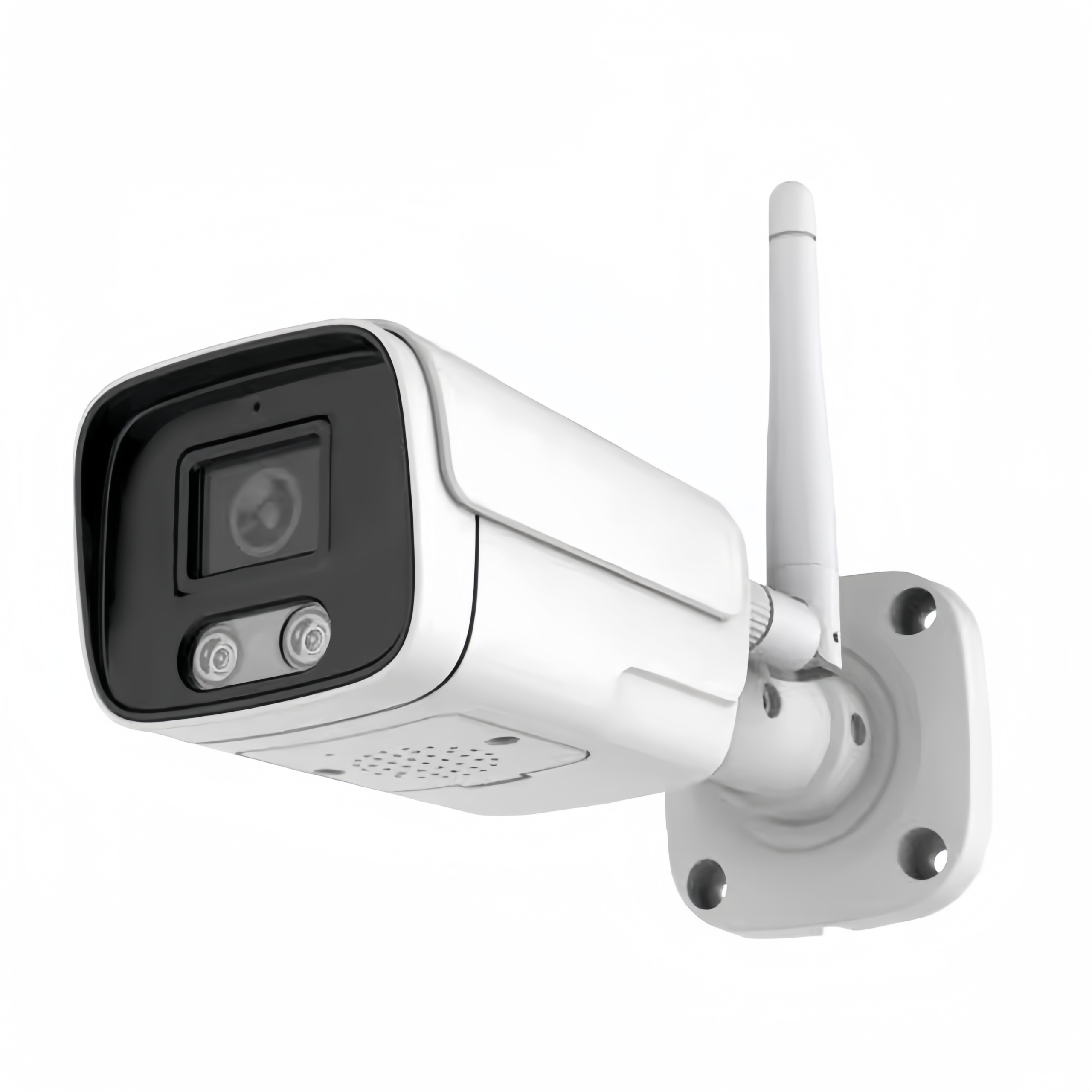

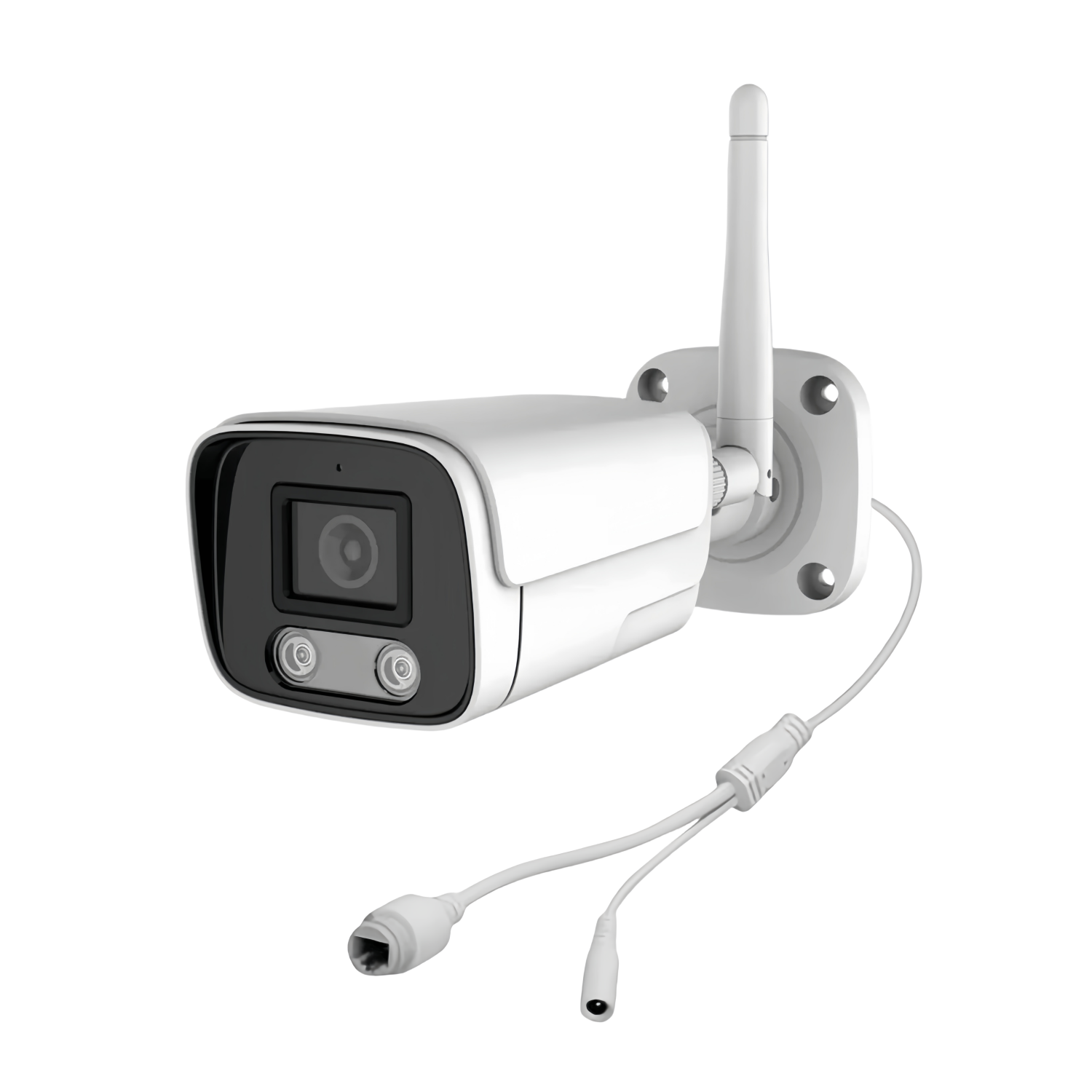

CCTV Security System
5MP, WiFi, TF Card, Motion Detection
Security Monitoring, Guard at Any Time.
Product Description
Feature:
- HD 5MP resolution.
- Support wifi network, and wired network.
- Support 128G max, TF card for storage, support Cloud storage.
- Support mobile detection alarm push to mobile phone, mobile detection recording.
- Support mobile app remote view and playback video. (APP: VideoLink)
Product Characteristics
Intelligent Recognition
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.
High Definition Images
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.
Wide Angle and Zoom Capabilities
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.
Cloud Storage
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod.
Product Parameters
Specification
| Specification | XZ-2AE15-ML/W |
| Structure | Sigmastar SSC30KD + 1/2.9″SENSOR CMOS |
| Minimum Illumination | Color 0.01 Lux @ F2.0, Night infrared on 0 Lux @F2.0 |
| VIDEO | Support OSD, Brightness/Contrast/Saturation/Sharpness Adjustable |
| Alarm | Support human detection voice alarm/alarm recording; Support Motion Detection Alarm Recording |
| LENS | 4mm/6mm/8mm optional |
| LED | 2pcs IR Led ,IR Distance 15-20M |
| Coded Format | H265+,H265,H.264 |
| Image Resolution | Main Stream：2880*1620,2560*1440, 2304*1296,1080P,720P, 1-30fps |
| Sub-stream：D1,VGA,640*360,480*360,1-30fps | |
| Video Compression Rate | 512Kbps-6Mbps continuously adjustable, support CBR/VBR |
| Audio | Built in 1pcs mic, 1pcs 2W speaker, Support Two-way voice intercom |
| Audio Frequency Code | G.711 audio standard, Support two way audio, Support audio and video synchronization |
| Protocol | Support HTTP/DHCP/RTSP/P2P/ONVIF,etc |
| WIFI | Support wifi 802.11b/g/n 2.4GHz |
| Storage | Support TF card, Max. 128G |
| Phone Client | Support iPhone、Android |
| Business Function | support CMS platform system application |
| power supply | DC12V，4W Max, IP65 |
| Size | 170*70*60mm |
| Package Size | 190*105*100mm |
Download Data Sheet
You May Also Like
Product Advantages
years experience in CCTV industry, has our own R&D team for hardware and software, Non-dust workshop, strict QC process, aging-test, good after-sale services and technical support. At our here , for the products, that we not only have front end camera equipment , but also have back end storage NVRs, DVRs equipment; So , for us , to providing the whole CCTV system to our customers all are safe : include the hard firmware &software, If you choose us to cooperation, the money also is safe!
