Product Description
1.Raw material branding
MSTAR Chipset,Ultra low illumination COMS, Sony Sensor/IMX415,
Outdoor/Indoor Waterproof bullet Vand POE cameras and POE NVR Kits
AI feature: Human &Vehicle detection ; Crossing the boundary detection;

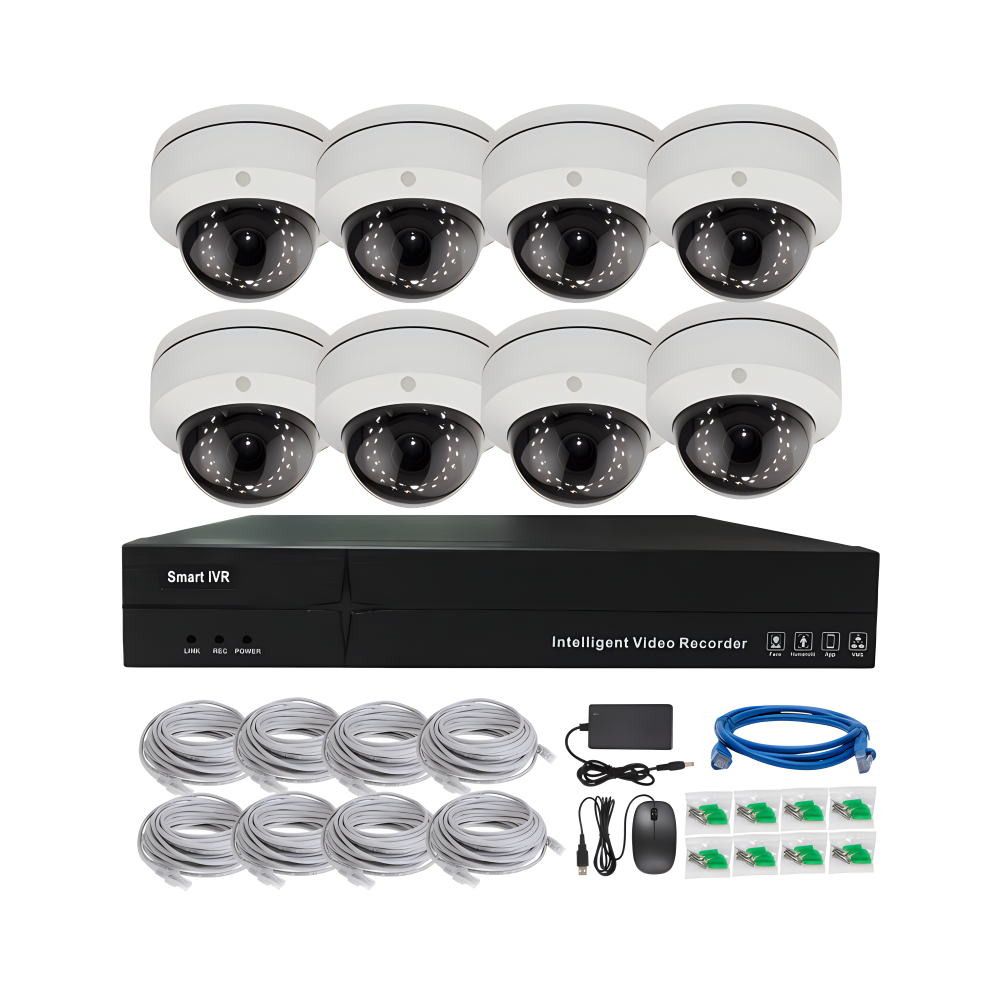

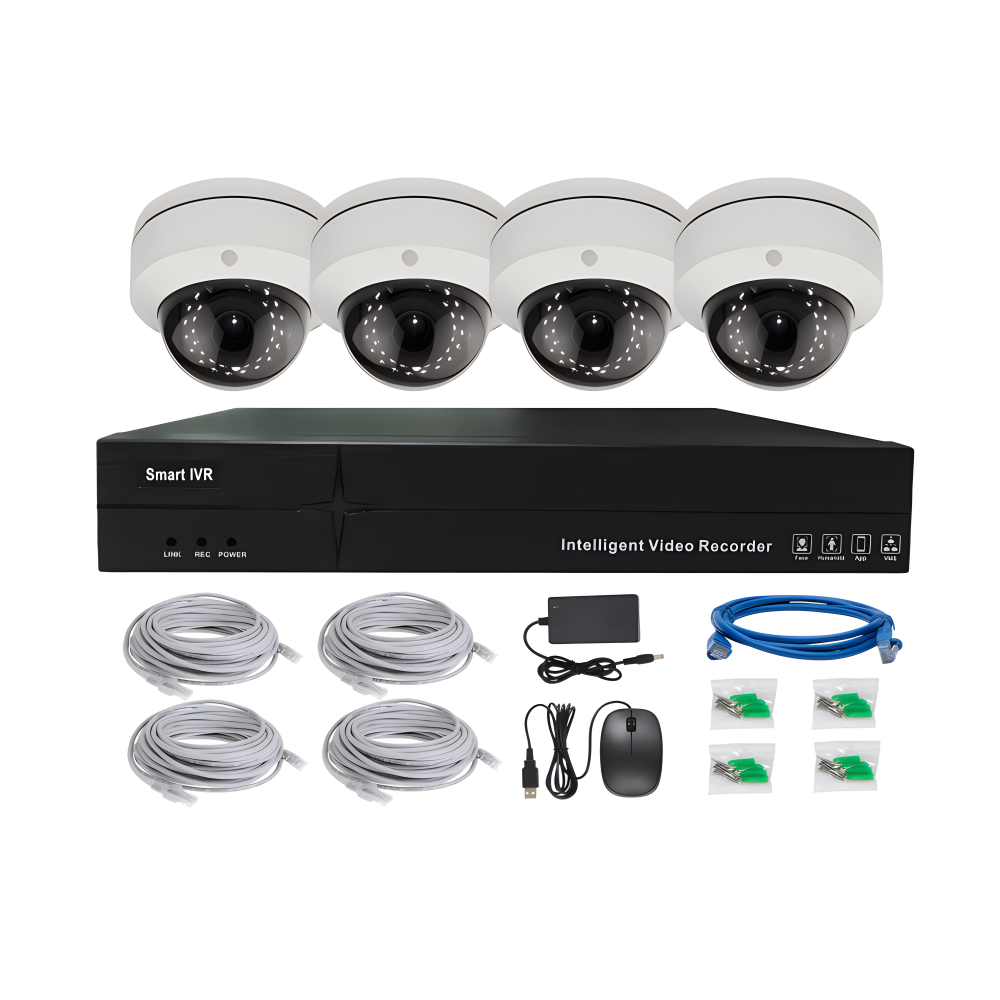

Easy building CCTV Kits 4CH,8CH, 16CH System ;
Full Metal housing of POE Cameras with HD Videos;
Work with All Types XONZ Cameras (Ultra HD Image 20fps, 25fps , Real 30fps optional ,real WDR )
Support: Zoom(4X&10XOptional), 2way audio,IO/Alarm and RS232/RS485 alarm ports optional
2. 24/7 Recording and Monitoring
Night vision support three mode setting: Auto white balance, Full color night vision, Dual light Source;
3. Real POE System building
Its POE features (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for power supply and video signal transmission.
Its comes with network cables which save much time and cost to look for wires.
Product Parameters
Specification
| Model: | XZ-KN9216E-MQ5/T5 | |
| System | ||
| Operating System | Embedded Linux operating System | |
| Video | ||
| Video input | 16CH 4K/5MP/1080P/960P/720P input | |
| Video output | VGA/HDMI， 3840×2160@60HZ | |
| Video bit rate | 16-3000Kbps | |
| Image preview | 1/4/6/8/9/16channel | |
| Video compression | H265/H265+/H.264 | |
| Capture mode | Schedule/Manual, JPEG format | |
| Audio | ||
| Audio port | 1CH output | |
| Audio compression | G.711A/U | |
| Storag | ||
| HDD port | 2 SATA port | |
| Capacity | Support 8TB HDD | |
| Alarm | ||
| Motion detection | Support image set to 396 (22*18) detection areas, multistage sensitivity | |
| Smart detection | Motion detection, video miss, video occlusion, occlusion alarm | |
| Network management | ||
| Network protocol | TCP/IP,HTTP,DDNS,DHCP,UPNP,NTP | |
| Compliance protocol | ONVIF, RTSP, GB28181 | |
| Remote application | WEB(IE, Chrome, Firefox, Safiri), IOS, Android Mobile monitor | |
| Others | Dual password authentication | |
| Playback&Backup | ||
| Playback mode | Manual/fixed time/alarm recording | |
| Playback capability | 1CH 4K | |
| 4CH 1080P/16CH D1 | ||
| Playback mode | Regular playback, event playback,external file playback | |
| External ports | ||
| Network port | 2 RJ-45 Ports (100M Ethernet port ) | |
| POE port | 16 PoE ports, support 802.3af 250W, | |
| USB port | 2 PCS USB 2.0 ports | |
| General | ||
| Power Supply | DC52V/4.62A | |
| Power Consumption | <190W (Without HDD) | |
| Storage Conditions | -10°C ~ 55°C / 10﹪-90﹪RH | |
| Dimensions | W326mm×D235mm×H52mm | |
| Camera | ||
| Structure | 8MP 1/2.8″ sensor CMOS | |
| Min. Illumination | Color 0.01 Lux@ F1.8,White-black 0.001 Lux@ F1.8 | |
| HDR | Support | |
| Lens | 4/6mm @F1.8 | |
| Mount | M12 | |
| IR Distance | Up to 40m | |
| Day&Night | ICR Filter Auto Switch | |
| Video | ||
| Max. Image Resolution | 8MP | |
| Tertiary Stream | 3840*2144,1-20fps; 3072*2048,2592*1920,2688*1504,2304*1280, 1-30fps;1920*1056,1280*704，1-60fps | |
| Secondary Stream | D1 ,VGA，640*360，480*360,CIF;1-30fps | |
| Video Compression | H.264 /H265 | |
| Video Bit Rate | 500Kbps-12Mbps continuously adjustable, support CBR/VBR,Support Smart AVC/SCBR | |
| Image Setting | Brightness/Contrast/Saturation/Sharpness | |
| Network | ||
| Ethernet | 1*RJ45 10M/100M Ethernet Port | |
| Protocol | Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P/HIK,etc | |
| Advanced Function | Motion Detection, Privacy Masking | |
| Event Trigger | Motion Detection, Network Disconnection, etc. | |
| General | ||
| Working Temperature | -20℃~60℃ | |
| Working Humidity | 0~90%(Non-condensing) | |
| Power Supply | DC12V/POE | |
| Power Consumption | 6W MAX | |
| package | ||
| Set contains | 16CH KIT：1*Host、16* Camera、16*20M Cable
1*mouse，Manual ,certificate |
|
