CCTV Security System
12mp 25FPS & 30FPS Optional High-End Configuration, Project Models
Security Monitoring, Guard at Any Time.
Product Description

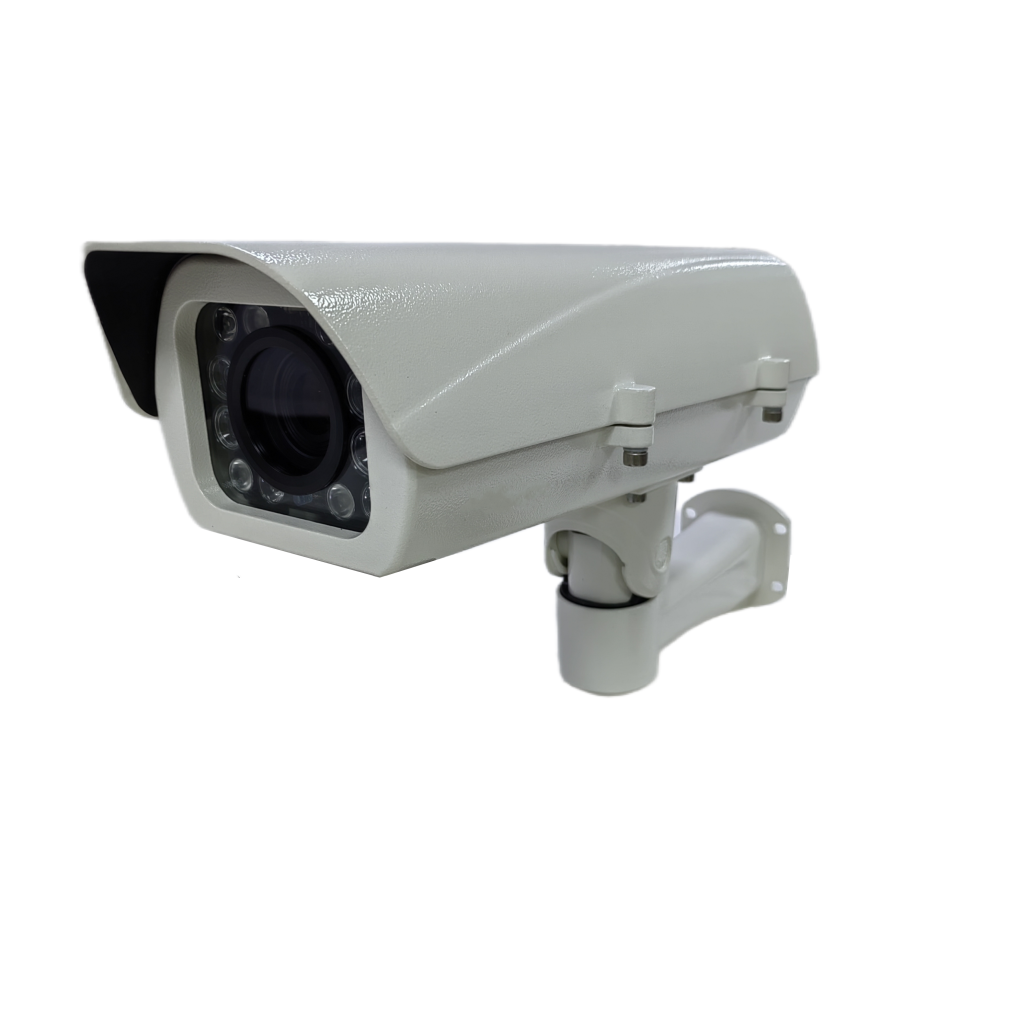

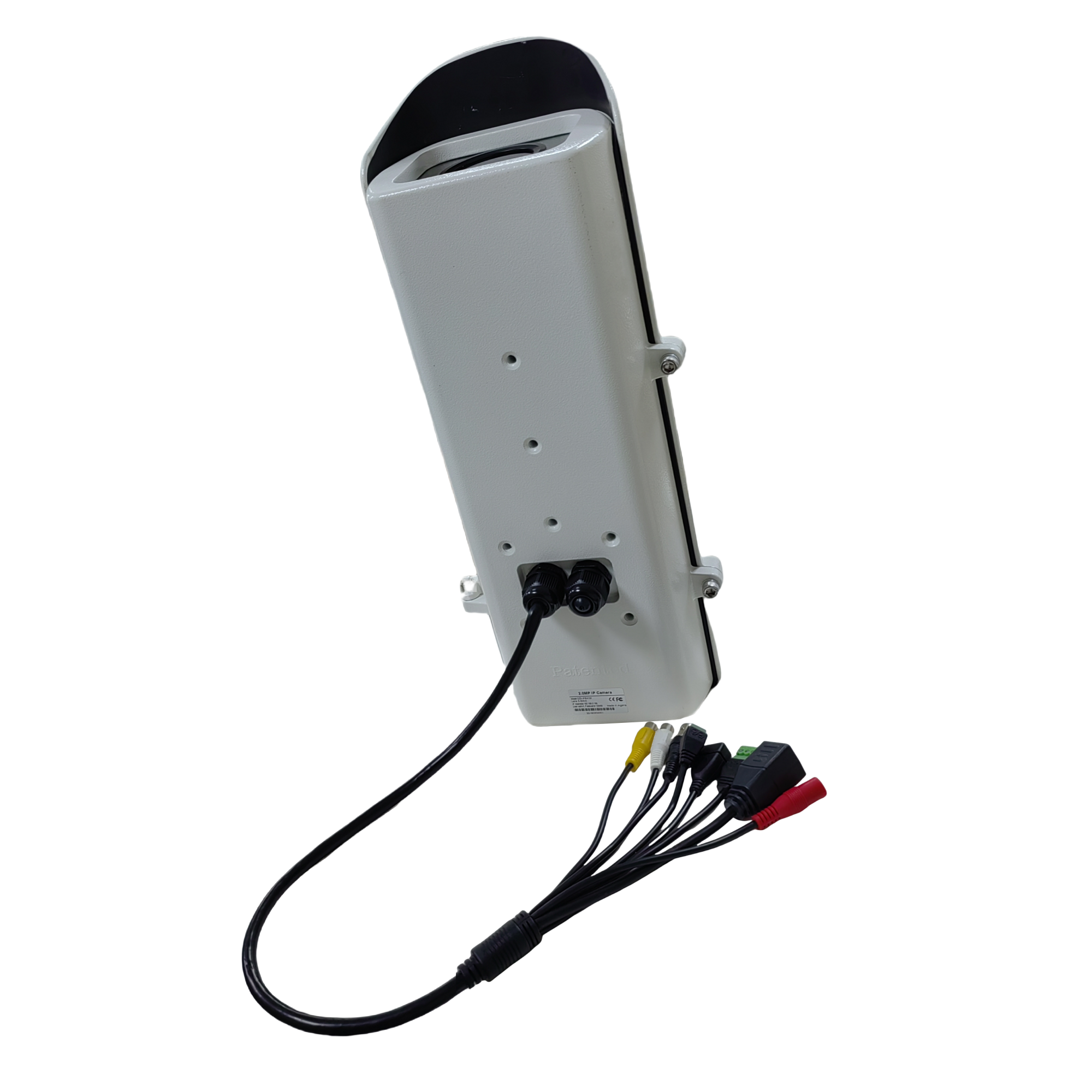

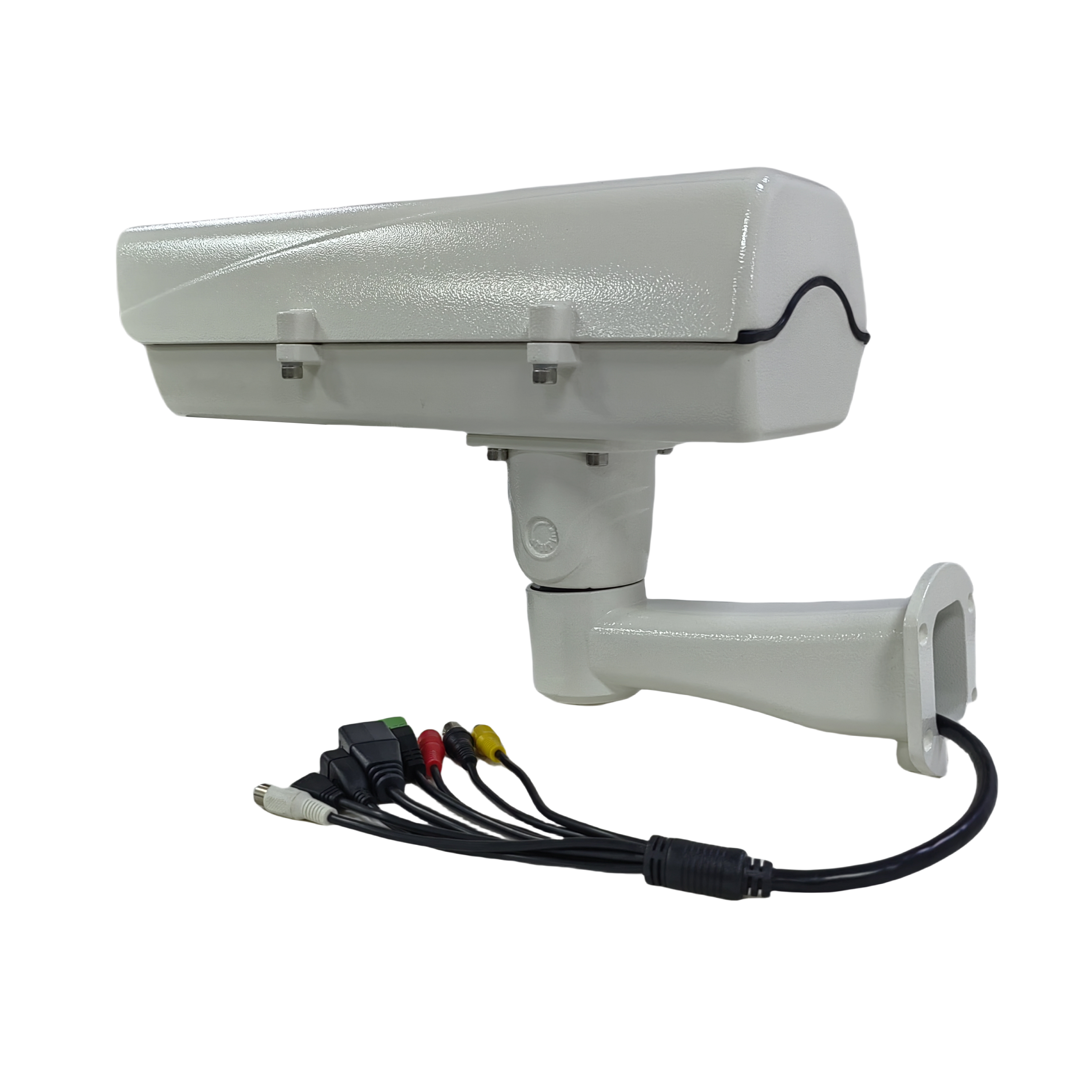

Ultra HD 12MP Anti-explosion waterproof/weatherproof outdoor bullet project camera
Embedded RTOS , Linux operating system, with RTSP, MJPEG;
Fram rate: 12MP 25fp (support customize 30fps);
MSTAR Chipset, CMOS, Sony/IMX577sensor;
8pcs SMD LEDs +4pcs array LEDs; IR-distance: 20M-60M;
Night vision: Suppot three mode (include:AWB, full color night vision,dual light source);
The lens: 12MPHD fixed lens: 3.2mm,4mm ,6mm,8mm 12mm optional; (Customize: wide angel- the max can be140°)
Support : AF/Motorized zoom lens:4X &10X zoom(the distance over 100M);
Compatible: 4K 16CH,36CH 64CH,128CH POE NVRs
Optional functions: POE, TF/SD,RS232/RS485/ IO/Alarm; Audio(1 way audio & 2 way audio optional);
AI features: Human&Vehicle detection; 4 arming modes of cross-border detection; Entering area ,Leaving area,Area intrusion,Classify detection and deploy motor vehicles , non-motor vehicles ,and pedestrians.
Product Characteristics
Human Detection
AI smart humanoid detect and humanoid tracking.
Vehicle Detection
Quickly find vehicle targets and auto tracking it.
Modify Light Mode
Suppot three mode (AWB, full color night vision and dual light source)
Cloud Storage
Videolink app support ISO, Android and table computer.
Auto Alarm Mode
Entering area, Leaving area, Area intrusion, Classify detection.
High Definition Images
4K 12MP 4000×3000 with ultra HD resolution.
Wide Angle And Zoom Capabilities
AF/Motorized zoom lens: 4X &10X zoom; wide angel: the max can be 140°.
Power Over Ethernet
The camera support POE optional function.
Product Parameters
Specification
| Specification | XZ-AE-5AF-MH |
| Structure | SSC359 ARM Cortex0A53 1.2GHz + 12MP 1/2.3″ CMOS IMX577 |
| HDR(WDR) | Support |
| Privacy mask | Support 4ch Privacy masking area |
| VIDEO | Support OSD,BLC,HLC,DWDR,3D NR;Brightness/Contrast/Saturation/Sharpness Adjustable, Support Motion Detection Alarm ; Area detection humanoid, car, bicycle, motorcycle alarm,Support night vision alarm light source linkage,Support for video occlusion alarm |
| lens | standard configuration 5mm; 3.2mm,8mm Optional |
| zoom | Optional 4x or 10x zoom lens, |
| Lens type&FOV | 3.2 mm, horizontal FOV 127°, vertical FOV 79°;
5mm, horizontal FOV 70°, vertical FOV 42°; 8 mm, horizontal FOV 40°, vertical FOV 28°; |
| IR Led | 4pcs IR Led，4pcs white light, IR distance 30-40M; |
| frequency | 50Hz/60Hz |
| AUDIO | Optional Built-in MIC and 2W SPK; audio encoding G.711 ,
Adding audio can realize two-way voice intercom and sound alarm； |
| Video Coded Format | H.264 /H265/H265+ |
| Image Resolution | Main stream: 25@FPS(4000×3000）；30@FPS（3840×2160，3072×2048,2592×1944)；60@FPS（2560×1440,2304×1296，1920×1080，)； |
| Sub-stream：D1 ,VGA，640*360，480*360,CIF;1-25fps | |
| Video Compression Rate | 500Kbps-12Mbps continuously adjustable, support CBR/VBR |
| TF | Optional MAX:128G |
| IO Alarm | Optional |
| Network Port | 10/100M self-adapt Ethernet port, lighting protection design |
| Protocol | Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P/HIK,etc. |
| Phone Clients | Support iPhone、Android |
| browser | Support IE10 and above (equipment embedded Web Server)browser, |
| Business functions | support unit client software,support CMS platform system application |
| Feature | support day/night（support IR-CUT）,support LDR signal linkage |
| General Parameters | DC12V，6W Max,IP66，Optional POE |
| working temperature | -30℃~60℃ |
